SLM/SLC Series Drying Filters

Model：SLM/SLC Series

Add Inquiry Go Buy

Description

Product Specifications

Model	Connection(in)		Flow cooling capacity(KW) under pressure drop △p(12)=0.07bar					Dimensions(mm)				Type
Model	ODF	SAE	R134a	R404A	R507	R22/R410A	R407C	A	B	D	L	Type

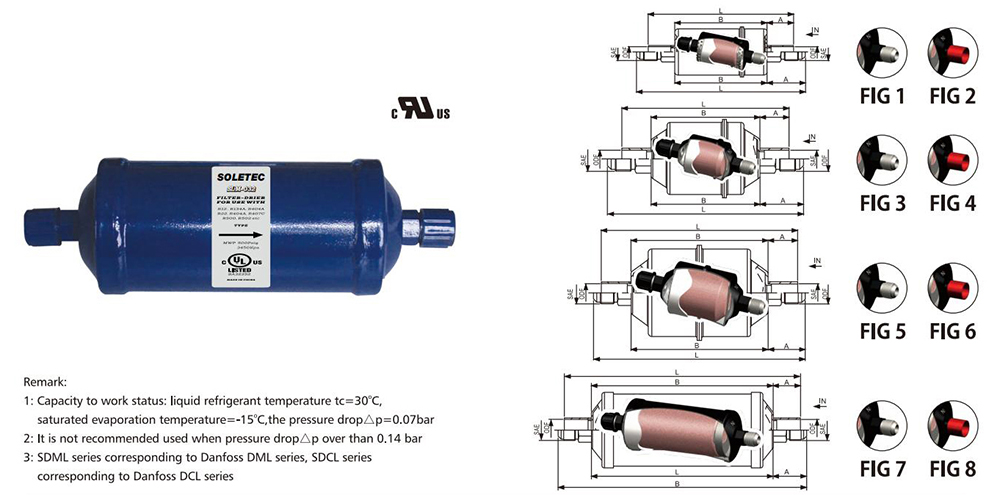

SLM/SLC-032		1/4	6.70	5.1	4.9	7.5	7.1	22.5	66	43	111	FIG 1
SLM/SLC-032S	1/4		6.70	5.1	4.9	7.5	7.1	16.5			99	FIG 2
SLM/SLC-033		3/8	12.9	9.9	9.6	14.5	13.8	27.5			121	FIG 1
SLM/SLC-33S	3/8		12.9	9.9	9.6	14.5	13.8	19			104	FIG 2
SLM/SLC-052		1/4	7.7	5.6	5.5	8.5	8.0	22.5	75	54	120	FIG 3
SLM/SLC-052S	1/4		7.7	5.6	5.5	8.5	8.0	18.5			112	FIG 4
SLM/SLC-053		3/8	12.9	9.8	9.5	14.5	13.8	27.5			130	FIG 3
SLM/SLC-053S	3/8		12.9	9.8	9.5	14.5	13.8	19			113	FIG 4
SLM/SLC-054		1/2	25.7	20.8	20.2	30.2	28.6	30			135	FIG 3
SLM/SLC-054S	1/2		25.7	20.8	20.2	30.2	28.6	20			115	FIG 4
SLM/SLC-082		1/4	7.7	5.4	5.3	8.2	7.9	22.5	101	54	146	FIG 5
SLM/SLC-082S	1/4		7.7	5.4	5.3	8.2	7.9	18.5			138	FIG 6
SLM/SLC-083		3/8	14.2	11.0	10.7	16.2	15.3	27.5			156	FIG 5
SLM/SLC-083S	3/8		14.2	11.0	10.7	16.2	15.3	19			139	FIG 6
SLM/SLC-084		1/2	28.6	21.4	20.7	31.7	30.2	30			161	FIG 5
SLM/SLC-084	1/2		28.6	21.4	20.7	31.7	20.2	20			141	FIG 6
SLM/SLC-085		5/8	43.8	35.3	34.3	51.6	48.7	35			171	FIG 5
SLM/SLC-085S	5/8		43.8	35.3	34.3	51.6	48.7	24			149	FIG 6
SLM/SLC-162		1/4	7.7	5.4	5.3	8.2	7.9	22.5	110	76	155	FIG 5
SLM/SLC-162S	1/4		7.7	5.4	5.3	8.2	7.9	18			146	FIG 6
SLM/SLC-163		3/8	16.3	11.2	10.8	16.8	16.2	27.5			165	FIG 5
SLM/SLC-163S	3/8		16.3	11.2	10.8	16.8	16.2	19			148	FIG 6
SLM/SLC-164		1/2	32.2	23.5	22.7	35.1	33.6	30			170	FIG 5
SLM/SLC-164S	1/2		32.2	23.5	22.7	35.1	33.6	20			150	FIG 6
SLM/SLC-165		5/8	44.6	36.6	35.6	53.4	50.2	35			180	FIG 5
SLM/SLC-165S	5/8		44.6	36.6	35.6	53.4	50.2	24			158	FIG 6
SLM/SLC-166		3/4	44.5	37.4	36.4	54.4	51.2	40			190	FIG 5
SLM/SLC-166S	3/4		44.5	37.4	36.4	54.4	51.2	26			162	FIG 6
SLM/SLC-167S	7/8		45.9	40.1	38.2	56.6	52.8	28.5			167	FIG 6
SLM/SLC-303		3/8	15.7	10.6	10.2	16.6	15.5	27.5	189	76	244	FIG 7
SLM/SLC-303S	3/8		15.7	10.6	10.2	16.6	15.5	19			227	FIG 8
SLM/SLC-304		1/2	32.5	25.0	24.3	36.8	35.1	30			249	FIG 7
SLM/SLC-304S	1/2		32.5	25.0	24.3	36.8	35.1	20			229	FIG 8
SLM/SLC-305		5/8	43.7	36.9	35.9	53.8	50.9	35			259	FIG 7
SLM/SLC-305S	5/8		43.7	36.9	35.9	53.8	50.9	24			237	FIG 8
SLM/SLC-306		3/4	45.7	39.8	38.9	55.6	52.5	40			269	FIG 7
SLM/SLC-306S	3/4		45.7	39.8	38.9	55.6	52.5	26			241	FIG 8
SLM/SLC-307S	7/8		64.3	54.0	52.5	77.8	73.3	28.5			246	FIG 8
SLM/SLC-309S	1-1/8		83.6	69.8	67.9	101.6	95.0	29			247	FIG 8
SLM/SLC-413		3/8	18.4	12.4	12.0	19.2	18.2	27.5	194	89	246	FIG 7
SLM/SLC-414		1/2	33.4	26.5	25.7	38.6	36.7	30			251	FIG 7
SLM/SLC-414S	1/2		33.4	26.5	25.7	38.6	36.7	20			231	FIG 8
SLM/SLC-415		5/8	55.4	41.8	40.6	62.1	59.1	35			261	FIG 7
SLM/SLC-415S	5/8		55.4	41.8	40.6	62.1	59.1	24			239	FIG 8
SLM/SLC-416		3/4	62.4	53.8	52.6	76.6	72.4	40			271	FIG 7
SLM/SLC-416S	3/4		62.4	53.8	52.6	76.6	72.4	26			243	FIG 8
SLM/SLC-417S	7/8		66.7	56.3	54.8	80.2	76.3	28.5			248	FIG 8
SLM/SLC-419S	1-1/8		95.3	76.3	74.1	112.3	105.4	29			249	FIG 8
