SLK Series Two way Heat Pump Drying Filter

Model：SLK Series

Add Inquiry Go Buy

Product Specifications

Model	Connection(in)		Flow cooling capacity(KW) under pressure drop △p(12)=0.07bar			Dimensions(mm)				Type
Model	ODF	SAE	R22	R410A	R407C	A	B	D	L	Type

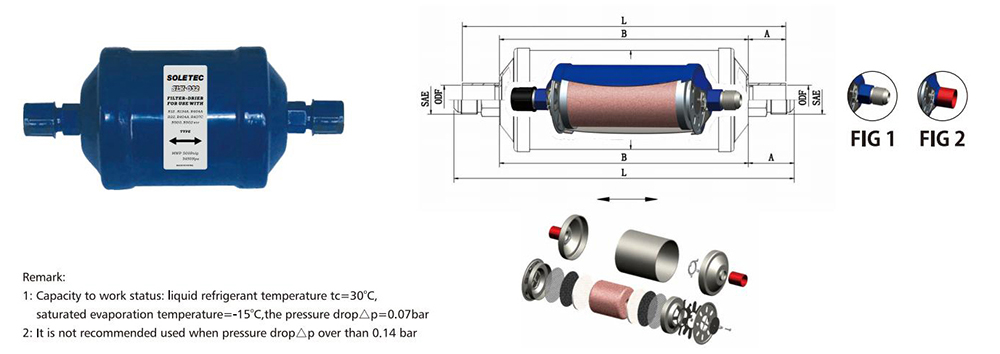

SLK-082		1/4	7.0	7.0	6.9	22.5	100	63.5	145	FIG 1
SLK-082S	1/4		7.8	7.8	7.4	18.5			137	FIG 2
SLK-083		3/8	15.8	15.8	15.4	27.5			155	FIG 1
SLK-083S	3/8		17.8	17.8	17.4	19			138	FIG 2
SLK-084		1/2	22.5	22.5	22.1	30			160	FIG 1
SLK-084S	1/2		23.6	23.6	23.2	20			140	FIG 2
SLK-085		5/8	27.4	27.4	26.6	35			170	FIG 1
SLK-085S	5/8		28.5	28.5	27.8	24			148	FIG 2
SLK-162		1/4	8.1	8.8	8.4	22.5	110	76	155	FIG 1
SLK-162S	1/4		10.9	12.0	11.6	18.5			147	FIG 2
SLK-163		3/8	16.2	16.2	15.8	27.5			165	FIG 1
SLK-163S	3/8		18.3	18.3	17.9	19			148	FIG 2
SLK-164		1/2	27.1	27.1	26.7	30			170	FIG 1
SLK-164S	1/2		28.5	28.5	27.8	20			150	FIG 2
SLK-165		5/8	29.2	29.2	28.5	35			180	FIG 1
SLK-165S	5/8		30.6	30.6	29.9	24			158	FIG 2
SLK-166		3/4	34.5	34.5	33.6	40			190	FIG 1
SLK-166S	3/4		36.6	36.6	35.9	26			162	FIG 2
SLK-167S	7/8		40.2	40.2	39.6	28.5			167	FIG 2
SLK-303		3/8	18.3	18.3	17.9	27.5	181	76	236	FIG 1
SLK-303S	3/8		20.4	20.4	20.0	19			219	FIG 2
SLK-304		1/2	26.8	26.8	26.4	30			241	FIG 1
SLK-304S	1/2		34.1	34.1	33.4	20			221	FIG 1
SLK-305		5/8	36.3	36.3	35.5	35			251	FIG 1
SLK-305S	5/8		50.0	50.0	48.9	24			229	FIG 2
SLK-306		3/4				40			261	FIG 1
SLK-306S	3/4		56.3	56.3	55.3	26			233	FIG 2
SLK-307S	7/8		58.8	58.8	57.7	28.5			238	FIG 2
SLK-309S	1-1/8		68.9	68.9	67.8	29			239	FIG 2
