SLE Series Drying Filters

Model：SLE Series

Add Inquiry Go Buy

Description

Product Specifications

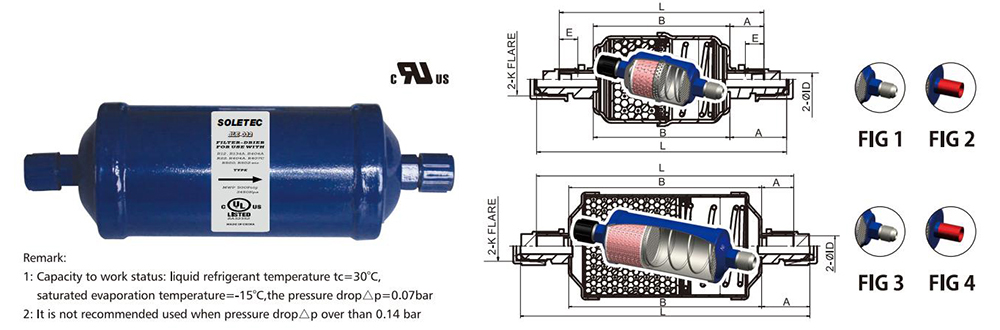

Model	Connection(in)		Flow cooling capacity(KW) under pressure drop △p(12)=0.07bar					Dimensions(mm)				Type
Model	ODF	SAE	R134a	R22/R410A	R407C	R404A/R507	R502	A	B	D	L	Type
SLE-032		1/4	6.7	7.4	7.0	5.0	4.6	22.5	66	42	111	FIG 1
SLE-032S	1/4		8.1	8.8	8.5	6.0	5.6	16.5			99	FIG 2
SLE-033		3/8	9.5	10.2	10.2	7.0	6.7	27.5			121	FIG 1
SLE-33S	3/8		10.5	11.6	11.6	7.7	7.4	19			104	FIG 2
SLE-052		1/4	7.1	7.7	7.6	5.3	5.3	22.5	76	63.5	121	FIG 3
SLE-052S	1/4		10.2	10.9	12.3	7.8	7.0	18			112	FIG 4
SLE-053		3/8	12.9	14.1	13.0	9.5	9.1	27.5			131	FIG 3
SLE-053S	3/8		15.8	17.2	16.5	11.6	11.2	19			114	FIG 4
SLE-082		1/4	7.2	7.8	7.6	6.0	5.6	22.5	96	63.5	141	FIG 3
SLE-082S	1/4		10.9	11.9	11.6	7.7	7.3	18			132	FIG 4
SLE-083		3/8	14.7	16.2	15.8	10.5	10.5	27.5			151	FIG 3
SLE-083S	3/8		15.1	16.8	16.5	10.8	10.8	19			134	FIG 4
SLE-084		1/2	23.5	25.7	24.9	17.2	16.7	30			156	FIG 3
SLE-084S	1/2		24.6	26.8	26.3	17.9	17.1	20			136	FIG 4
SLE-085		5/8	34.6	36.8	36.0	24.2	23.4	35			166	FIG 3
SLE-085S	5/8		38.5	40.4	39.6	25.7	24.8	24			144	FIG 4
SLE-162		1/4	7.4	8.1	7.8	6.2	5.8	22.5	118	76	163	FIG 3
SLE-162S	1/4		13.3	14.7	14.4	10.8	10.5	18			154	FIG 4
SLE-163		3/8	15.4	16.8	16.5	11.4	10.9	27.5			173	FIG 3
SLE-163S	3/8		17.6	18.7	18.3	12.8	12.4	19			156	FIG 4
SLE-164		1/2	29.8	31.4	30.6	21.0	20.4	30			178	FIG 3
SLE-164S	1/2		31.8	33.2	32.2	21.8	21.6	20			158	FIG 4
SLE-165		5/8	41.5	44.8	44.0	30.3	29.2	35			188	FIG 3
SLE-165S	5/8		46.3	50.4	48.9	33.4	32.4	24			166	FIG 4
SLE-166		3/4	51.6	52.6	52.0	36.7	35.4	40			198	FIG 3
SLE-166S	3/4		53.8	55.4	58.0	38.4	37.6	26			170	FIG 4
SLE-167S	7/8		56.2	61.2	59.8	41.6	39.8	28.5			175	FIG 4
SLE-303		3/8	16.5	17.8	17.6	12.1	11.8	27.5	191	76	246	FIG 3
SLE-303S	3/8		26.8	29.2	27.8	17.6	16.8	19			229	FIG 4
SLE-304		1/2	30.2	32.6	32.0	21.8	21.4	30			251	FIG 3
SLE-304S	1/2		31.6	33.4	33.1	22.5	21.8	20			231	FIG 4
SLE-305		5/8	48.6	52.8	51.8	35.2	34.2	35			261	FIG 3
SLE-305S	5/8		51.2	55.2	54.2	37.1	36.2	24			239	FIG 4
SLE-306		3/4	52.8	58.4	56.8	39.2	38.3	40			271	FIG 3
SLE-306S	3/4		56.4	60.2	59.2	40.5	39.1	26			243	FIG 4
SLE-307S	7/8		62.2	66.5	65.2	44.6	43.4	28.5			248	FIG 4
SLE-309S	1-1/8		87.8	94.8	93.3	63.4	61.8	29			249	FIG 4
SLE-413		3/8	16.8	18.2	17.8	12.7	12.3	27.5	194	89	249	FIG 3
SLE-414		1/2	34.5	37.2	36.6	25.1	24.4	30			254	FIG 4
SLE-414S	1/2		37.8	40.8	40.2	27.6	26.2	20			234	FIG 3
SLE-415		5/8	55.2	59.2	58.4	39.8	38.6	35			264	FIG 4
SLE-415S	5/8		59.2	63.0	61.4	42.3	40.8	24			242	FIG 3
SLE-416		3/4	62.8	68.6	67.2	45.6	43.1	40			274	FIG 4
SLE-416S	3/4		66.8	72.4	70.8	48.2	47.4	26			246	FIG 4
SLE-417S	7/8		71.6	77.5	76.4	51.8	50.4	28.5			251	FIG 4
SLE-419S	1-1/8		88.8	96.0	94.6	64.4	62.4	29			252	FIG 4
