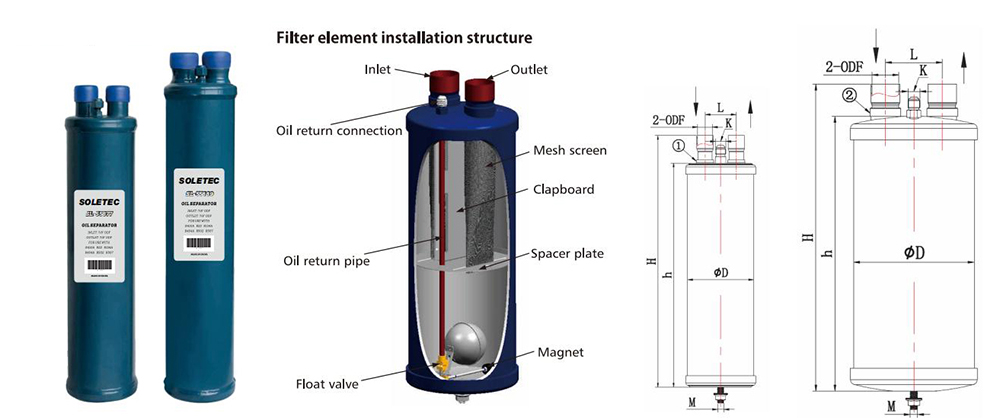

Model | In the refrigerating capacity of the evaporation | ODF (in) | SAE (in) | Overall dimensions (mm) | Pre-charge qty（mL） | Cubage （L） | Remarks | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
R404A/R507 | R134a | R22/R407C | ||||||||||||||
-40℃ | +5℃ | -40℃ | +5℃ | -40℃ | +5℃ | φD | L | h | H | M | ||||||
SL-5201 | 5.31 | 7.0 | 3.2 | 6.2 | 5.3 | 7.1 | 1/2 | 1/4 | 102 | 48 | 240 | 272 | M10 | 400mL | 1.73 | ① |
SL-5202 | 14.2 | 19.3 | 11.4 | 15.8 | 15.9 | 19.5 | 5/8 | 300 | 335 | 2.17 | ||||||
SL-5203 | 22.8 | 29.2 | 16.7 | 22.4 | 24.8 | 28.3 | 7/8 | 340 | 382 | 2.47 | ||||||
SL-5204 | 30.0 | 37.6 | 22.4 | 29.9 | 31.8 | 37.2 | 1-1/8 | 370 | 412 | 2.70 | ||||||
SL-5205 | 36.7 | 49.0 | 28.1 | 40.4 | 40.5 | 47.8 | 1-3/8 | 450 | 492 | 3.28 | ||||||
SL-55824 | 5.31 | 7.0 | 3.2 | 6.2 | 5.3 | 7.1 | 1/2 | 3/8 | 102 | 48 | 240 | 272 | M10 | 400mL | 1.73 | ② |
SL-55855 | 14.2 | 19.3 | 11.4 | 15.8 | 15.9 | 19.5 | 5/8 | 300 | 335 | 2.17 | ||||||
SL-55877 | 22.8 | 29.2 | 16.7 | 22.4 | 24.8 | 28.3 | 7/8 | 340 | 382 | 2.47 | ||||||
SL-55889 | 30.0 | 37.6 | 22.4 | 29.9 | 31.8 | 37.2 | 1-1/8 | 370 | 412 | 2.70 | ① | |||||
SL-559011 | 36.7 | 49.0 | 28.1 | 40.4 | 40.5 | 47.8 | 1-3/8 | 450 | 492 | 3.28 | ||||||
SL-569011 | 41.0 | 50.8 | 33.4 | 48.4 | 45.2 | 49.8 | 1-3/8 | 159 | 75 | 360 | 402 | M12 | 400mL | 6.20 | ② | |
SL-569211 | 430 | 472 | 7.50 | |||||||||||||
SL-569213 | 51.4 | 65.2 | 41.3 | 56.3 | 56.5 | 63.4 | 1-5/8 | 430 | 476 | 7.50 | ||||||
SL-569417 | 88.5 | 108.6 | 63.3 | 89.0 | 91.4 | 105.5 | 2-1/8 | 430 | 482 | 7.50 | ||||||
